icf Supply
ALASKA'S ONLY AUTHORIZED NUDURA ICF DISTRIBUTOR & SOURCE FOR PREMIUM CONCRETE FORMING SUPPLIES

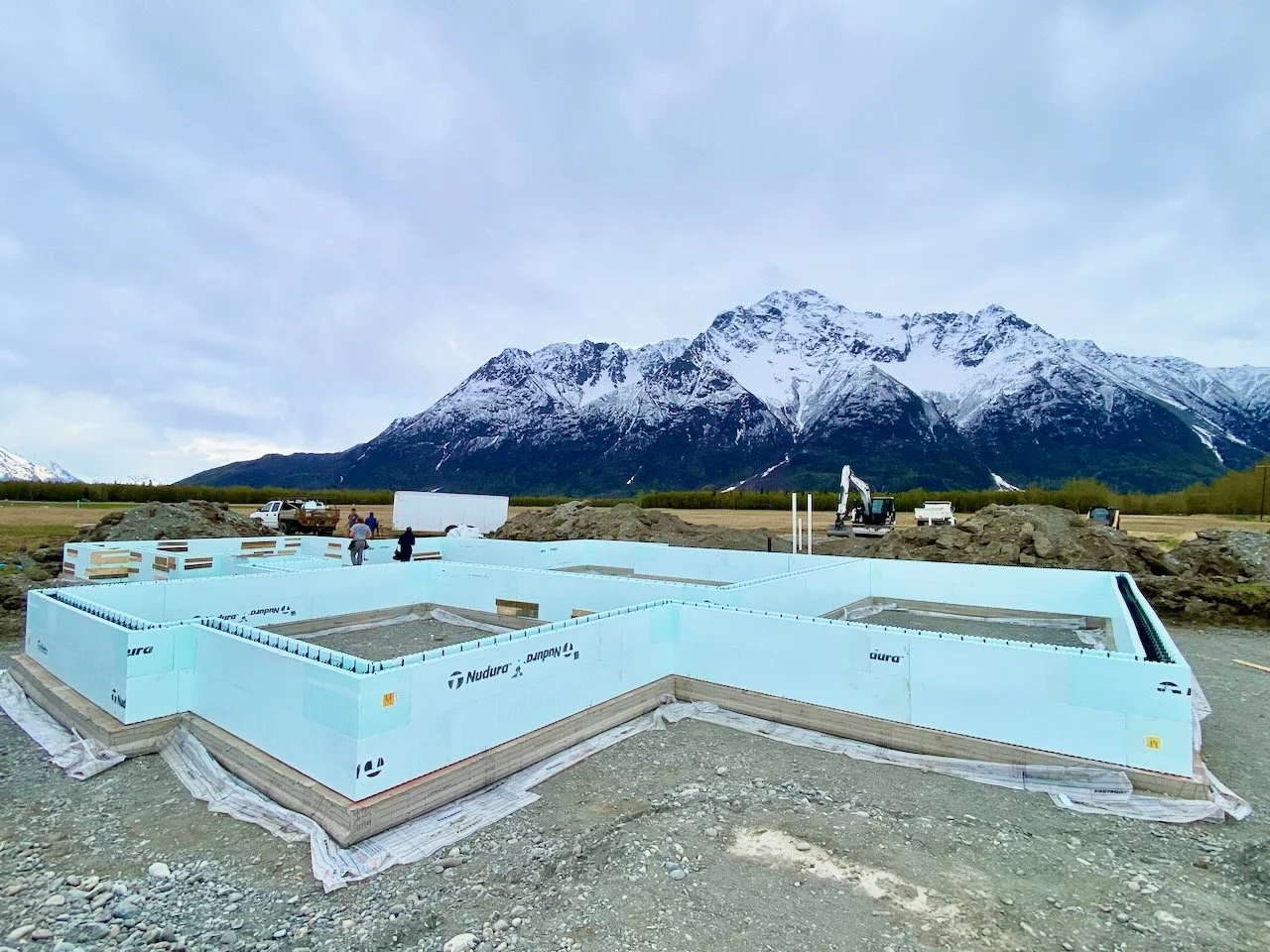

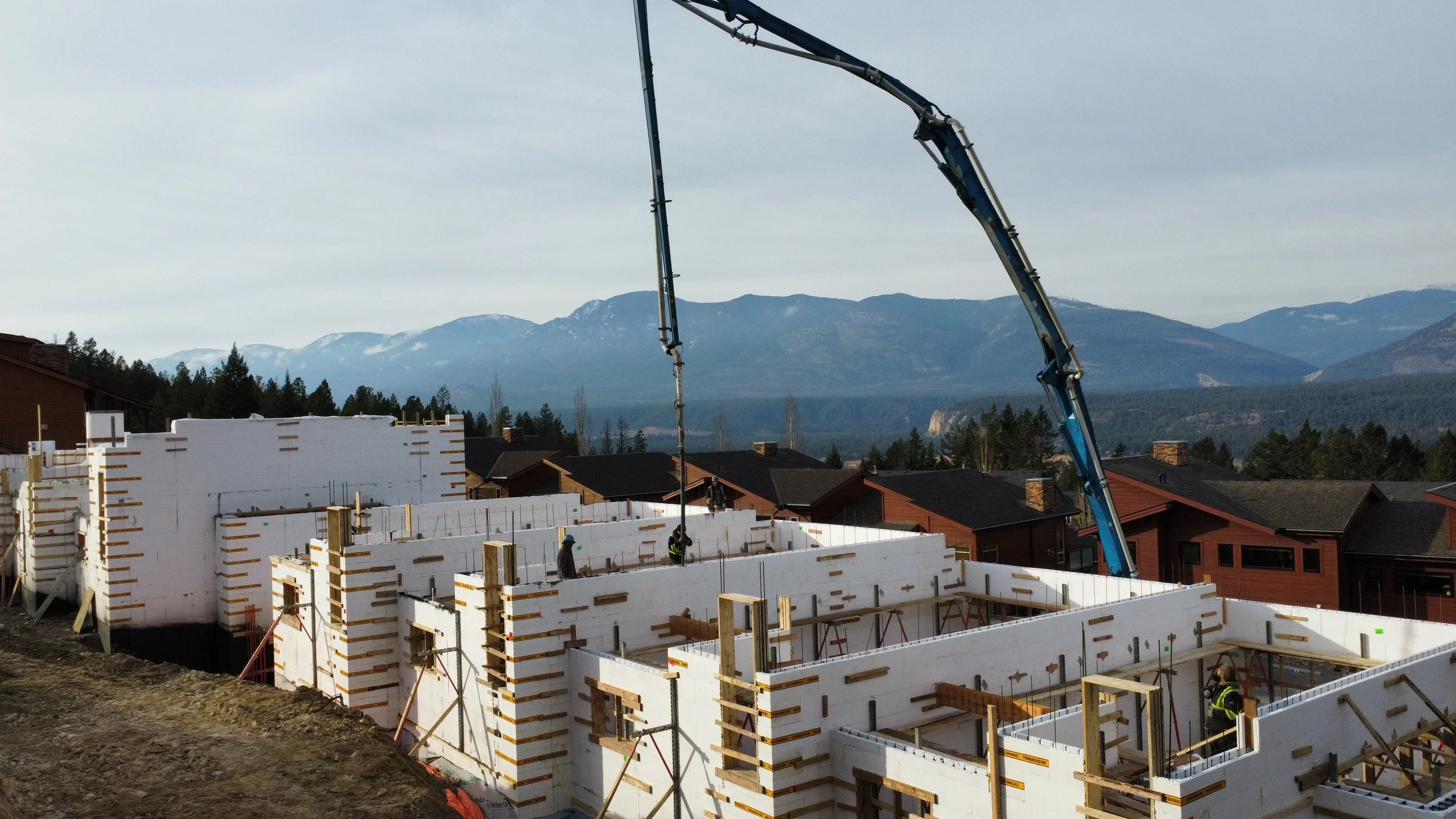

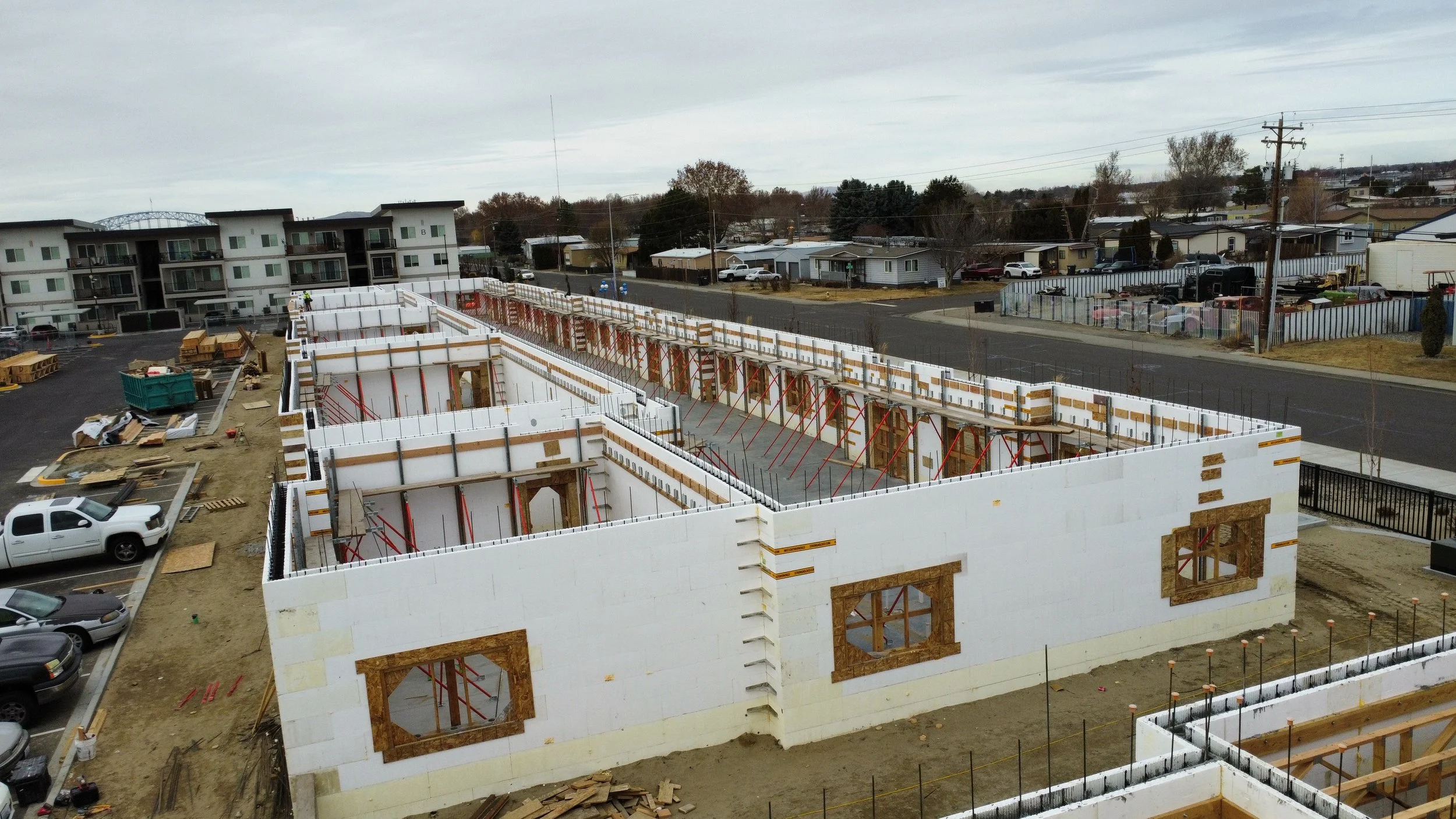

INSULATED CONCRETE FORMS
FEATURING NUDURA ICF
We're Alaska's authorized Nudura ICF forms distributor. Get the best raw material for Alaskan projects built to defy Mother Nature. Learn more about the benefits and uses for ICF from our subsidiary, Remote Alaska Solutions.
NUDURA ADVANTAGES
Patented Duralok™ fastening strip locks forms into place along the full 18-inch height, eliminating float & compression, and providing an industry-leading continuous fastening strip for finish materials.
Patented Durafold™ hinged web allows forms to be shipped flat so you get 40% more product per truckload. Simply unfold & stack.
Largest standard forms in the industry, measuring 96" x 18" and allowing the placement of 12 square feet of wall area in one step.
Patented foam interlock system is 4-way reversible, virtually eliminating waste or the need for separate left/right corner pieces.
Complete 6 construction phases in a single product, serving as your: Form system, wall structure, insulation package, air barrier, vapor barrier, and interior/exterior finish anchor.
CONCRETE FOOTINGS & COLUMN FORMS
FEATURING FASTFOOT, FASTFOOT PRE-SEWN CORNERS & FASTTUBE
Using Fastfoot® concrete footings instead of plywood costs less, can be rapidly deployed & stripped, and reduces weight by over 3 times, reducing wear and tear on your crew, and keeping your project ahead of schedule. Made of high density polyethylene fabric, Fastfoot® sustainably replaces lumber and plywood for forming concrete footings. A 100' roll of Fastfoot® forms the same concrete as 1,500 pounds of lumber.
FASTFOOT® AVANTAGES
SAVES $ & LABOR - Fastfoot® costs significantly less than heavy & expensive plywood while saving on labor costs.
REVENTS CONCRETE DAMAGE - Fastfoot® won’t damage screed boards and stakes so they can be reused.
ADAPTS TO DEEP OR UNEVEN TERRAIN - Visible width lines allow Fastfoot® to accommodate uneven contours, stepped footings, or deep footings & commercial pads of up to 4'.
PREVENTS RISING DAMP & GROUND WATER CONTAMINATION - Closed-form membrane prevents ground moisture from wicking into the footing concrete & prevents fine cement from entering the water table.
YIELDS STRONGER CONCRETE - When concrete isn't contaminated by mud & water you get a stronger set. Fastfoot® helps to control moisture levels for proper cement hydration.
ACHIEVES GREEN BUILDING STANDARD - Fastfoot® is LEED® contributing and GreenSpec® listed. It is zero-waste, a fraction of the shipping weight & cost, and uses minimal resources.
FASTFOOT®
AVAILABLE SIZES:
FF50 - Narrow (50" wide)
Suitable for footings up to 18" wide/10" deep
FF62 - Standard (62" wide)
Suitable for footings up to 24" wide/13" deep
FF74 - Wide (74" wide)
Suitable for footings up to 36" wide/13" deep
Width required = footing width + 2 x footing height + 10"
FASTFOOT® CORNERS
AVAILABLE CORNERS:
Fastfoot® corners are presewn for rapid installation. Each corner measures 4' by 4' and 20 are included per box. With a 12" overlap the effective length of each corner is 6'. Three sizes are available:
FF50C - Narrow Corner
FF62C - Standard Corner
FF74C - Wide Corner
FAST-TUBE™
AVAILABLE COLUMNS:
Fast-Tube™ is a revolutionary utility fabric form for creating round concrete columns. It occupies just 1% of the space of conventional cardboard forms and weighs 90% less. Manufactured from high strength polyethylene, Fast-Tube™ comes on 50-100' rolls & is available in diameters from 8" to 20”. Pouring and stripping is quick and easy with the same advantages as FastFoot™.
100’ Roll - Available in 8”, 10” and 12” diameters
50’ Roll - Available in 12”, 14”, 16”, 18” & 20” diameters
BRACING
FEATURING ZONT HORIZONTAL ICF BRACING

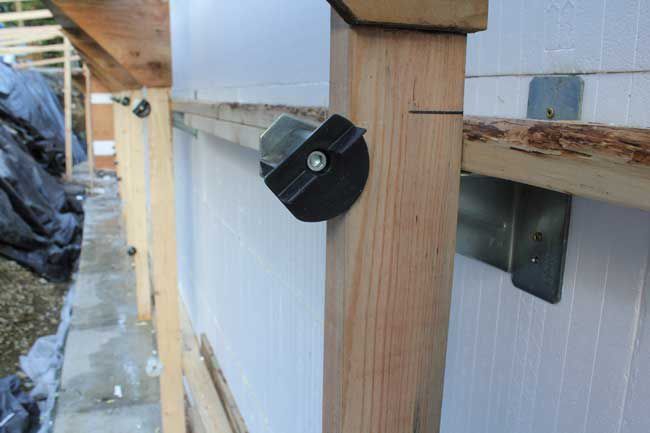

Our ZONT ICF bracing system creates a cost-effective framework for perfect alignment using materials that can be reused throughout the rest of the project.
ZONT ADVANTAGES
STRAIGHTER WALLS - HoriZONTal braces first straighten horizontally to prevent the waviness of conventional vertical braces.
ECONOMICAL - Costs 90% less than conventional vertical bracing, & utilizes site-available 2x4s to save on delivery & storage costs.
FAST TO INSTALL - A quick twist locks bracing into place.
LIGHTWEIGHT - 89% less weight than vertical bracing.
HEIGHT-ADAPTABLE - Brace short stem walls or 20' tall walls.
EASY BUCKING - Easily reinforce windows & end-of-wall bucks without vertical braces getting in the way.
EASY TO TRANSPORT - Zotes galvanized totes easily carry 20 Zonts or 15 Zuckles for stackable, weatherproof transport.
SUSTAINABLE - Utilizes site-available, reusable 2x4s.
CONCRETE REINFORCEMENT
FEATURING GATORBAR COMPOSITE REBAR
Composite rebar that's stronger & lighter than steel, competitively priced and trusted by contractors nationwide. GatorBar's FRP rebar alternative is 7x lighter than steel with a higher tensile strength, inherent rust & corrosion-resistance, and will add years to the life of your project. Their patented process uses the highest quality basalt fiber and epoxy resin for exceptional performance in a wide variety of construction applications. It is available in 10', 20' & 40' lengths, and can be offered with factory-made bends. GatorBar can be used anywhere rebar is used, including large slabs, pavements, walls & more.
GATORBAR ADVANTAGES
HIGH STRENGTH - Its high tensile strength allows #3 GatorBar to replace #4 black bar at a comparable price.
LABOR SAVINGS - Labor savings estimated at 1 man-hour per ton of steel replaced.
FREIGHT SAVINGS - Up to 75% freight savings on truckload quantities.
EXTENDED STRUCTURAL LIFE - No rust high strength equals long life.
REDUCED INJURY - Workers will carry and place 7X less weight per job, reducing repetitive lifting injuries and other bodily strain.
